Quadrilobe shape catalyst support
Description
- High compressive strength
- Low wear
- Adjustable size,Pore structure,stacking density
- stable and excellent use effect
Tech Specs
Product Description:

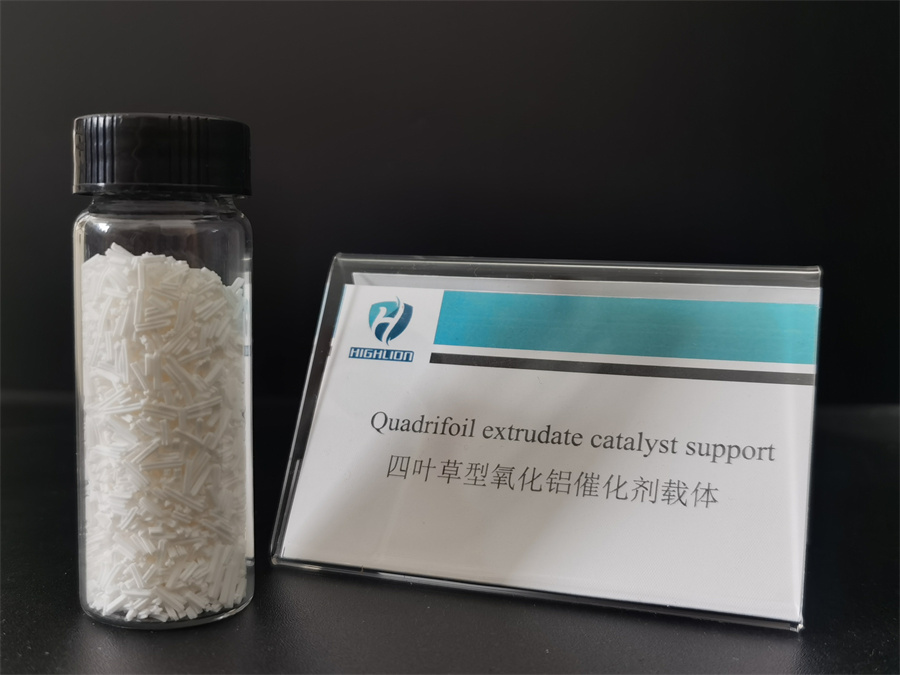

Quadrilobes shape catalyst support the Crystal form is γ-Al2O3 or θ- Al2O3. This product is white four-leaf granules, non-toxic
odorless, insoluble in water and ethanol. All indexes can be adjusted according to requirements. It is widely used in adsorbent
hydrodesulfurization catalyst carrier, hydrodenitrification catalyst carrier, CO sulfur-tolerant shift catalyst carrier and other fields.
Product Specification:
| Brand | Diameter | Length | L.O.I | Water absorption | Radial strength | Specific surface area | Pore volume | Attrition | Bulk density |
| mm | mm | % | % | N/㎝ | m2 /g | ml/g | % | g/ml | |
| HL-CP01 | 1.2-6.0 | 3.0-15.0 | <5.0 | >90.0 | >60.0 | 200-400 | 0.6-0.9 | <5.0 | 0.4-0.6 |
| HL-CP02 | 1.2-6.0 | 3.0-15.0 | <5.0 | >60.0 | >80.0 | 200-300 | 0.4-0.5 | <3.0 | 0.7-0.9 |
| HL-CP03 | 1.2-6.0 | 3.0-15.0 | <5.0 | >60.0 | >100.0 | 200-300 | 0.5-0.6 | <3.0 | 0.6-0.8 |
